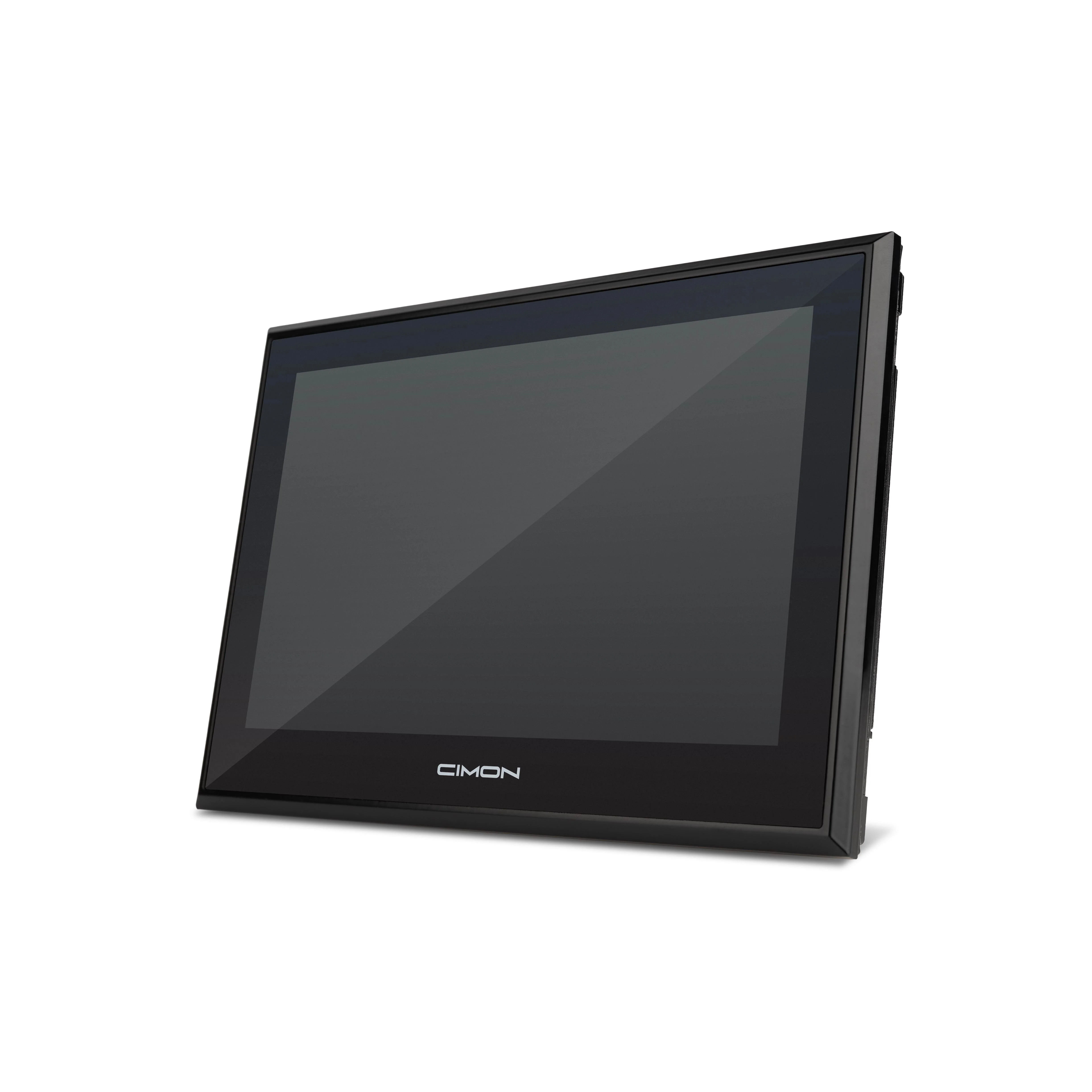

CM-eXT2-10W-RH-DF - 10.1 inch, eXT2 Xpanel, High-Brightness HMI
10.1" High-Brightness Display (1,200 cd/m²)
IP68 Protection with Aluminum Enclosure
Multiple Connectivity Options
Price
Price Available on Request
Fast Delivery
Technical Support
Certifications: UL, CE, FCC, IP68
Complete Technical Specifications
Detailed specifications and technical parameters for the CM-eXT2-10W-RH-DF HMI system.
Parameter
Specification
Display Size
10.1 inch Wide TFT Color LCD
Resolution
1280 x 800 WXGA (16:10)
Luminance
1,200 cd/m²
Touch Panel
5 wire resistive with ±2% accuracy
Memory
2 GB LPDDR4 RAM, 8 GB eMMC
Power Supply
24 VDC Class 2
Operating Temperature
-20 to +70°C
Protection Class
IP68 front protection
Connectivity
2x Ethernet, 2x Serial, USB A/C
Manufacturing Origin
🇰🇷
South Korea
Engineered for Industrial Excellence
Advanced features and robust design ensure reliable operation in demanding industrial environments.
High-Brightness Display
1,200 cd/m² luminance ensures clear visibility in bright industrial environments with excellent contrast and color accuracy for critical monitoring applications.
Rugged Protection
IP68 front protection with aluminum enclosure provides superior durability against water, dust, and harsh industrial conditions ensuring long-term reliability.
Versatile Connectivity
Multiple communication options including dual Ethernet, serial ports, and USB interfaces enable seamless integration with various industrial automation systems.
Wide Operating Range
Operates reliably from -20°C to +70°C making it suitable for extreme temperature environments commonly found in industrial applications.
Precision Touch Control
5-wire resistive touch panel with ±2% accuracy provides precise control and reliable input recognition even when wearing industrial gloves.
Powerful Performance
2 GB RAM and 8 GB eMMC storage with embedded Linux OS delivers fast response times and supports complex HMI applications with reliability.
Frequently Asked Questions
What connectivity options are available for integration?

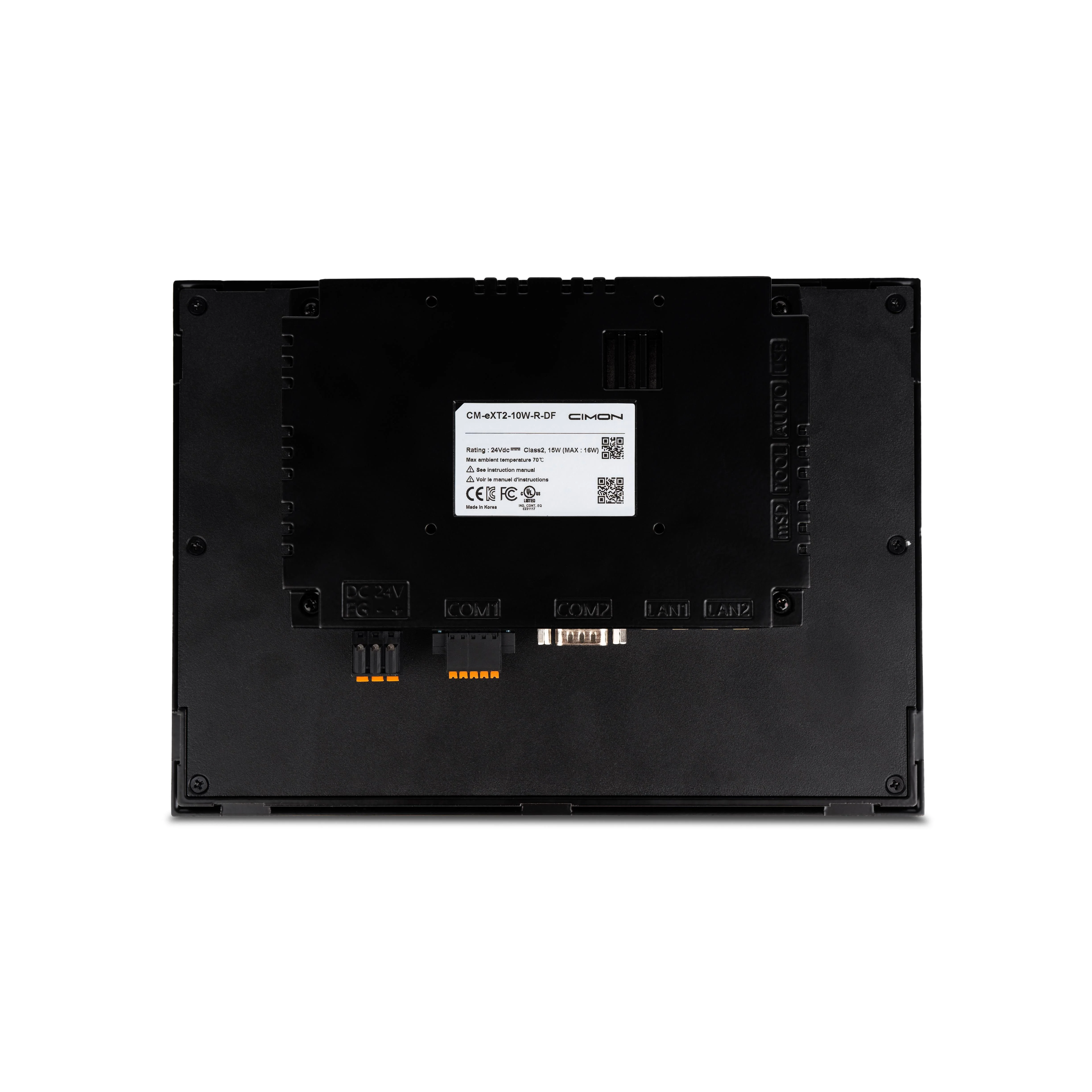

The HMI includes 2x Ethernet ports, 2x Serial ports (RS-422/485 and RS-232C), USB Type A, USB-C tool port, MicroSD card slot, and audio line-out for comprehensive connectivity.
What is the operating temperature range?
The unit operates reliably in temperatures ranging from -20°C to +70°C, making it suitable for harsh industrial environments with extreme temperature conditions.
What protection class does this HMI offer?
The HMI features IP68 front protection class and NEMA Type 4X, 12 compliance, providing excellent protection against water, dust, and environmental hazards in industrial settings.
What memory capacity and storage options are available?
The system includes 2 GB LPDDR4 RAM, 8 GB eMMC storage, 250 MB project memory, and 4 GB user memory, plus expandable storage via MicroSD card slot.
