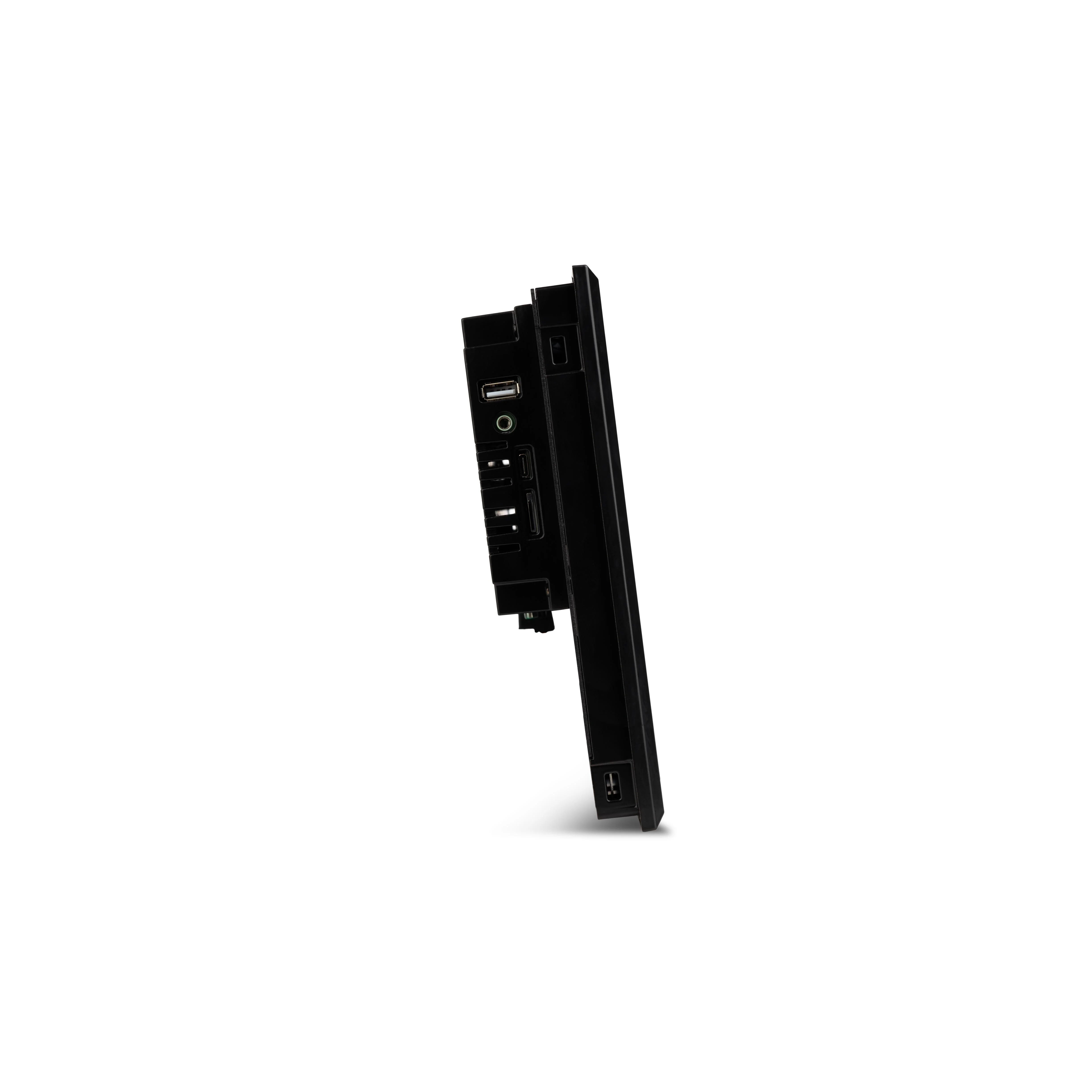

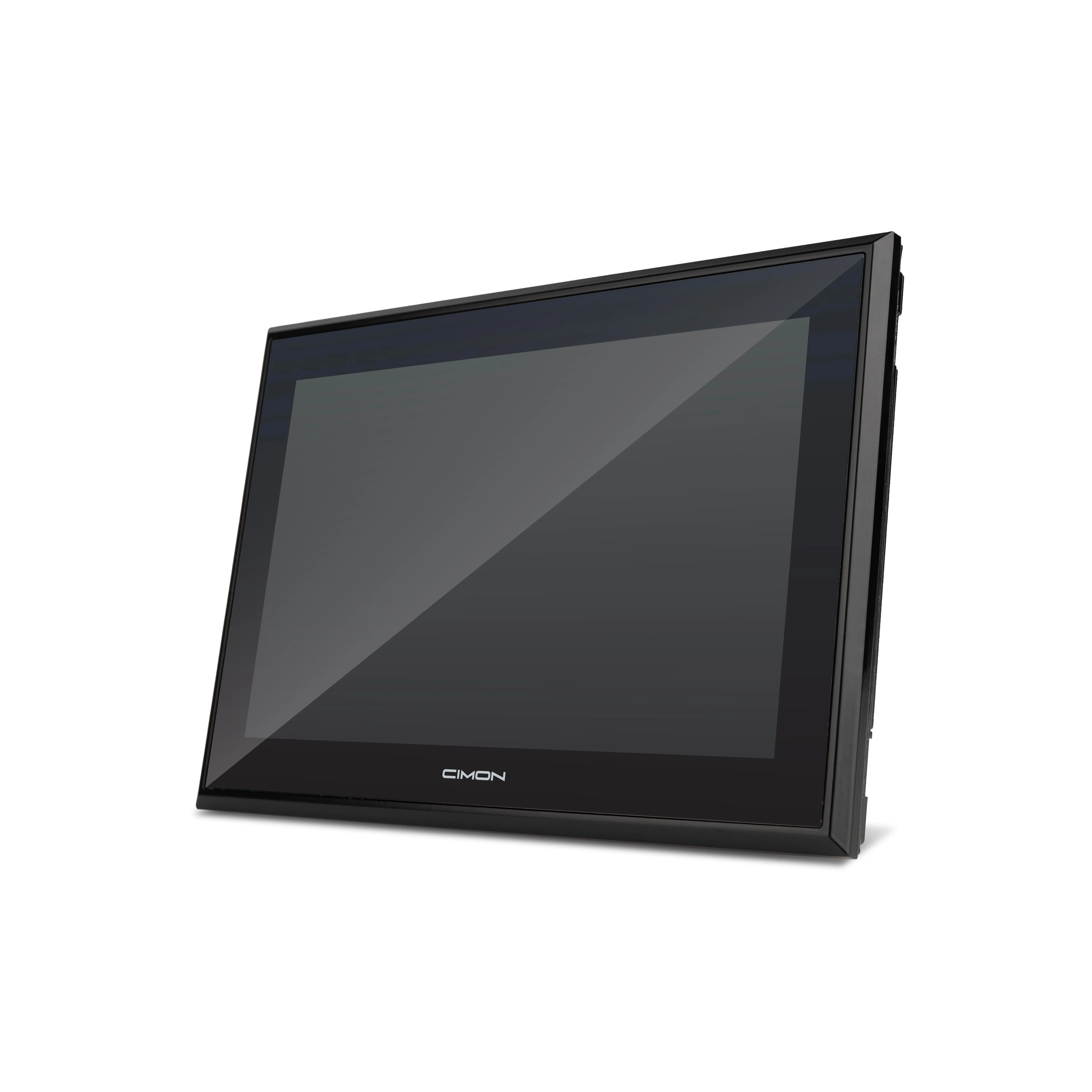

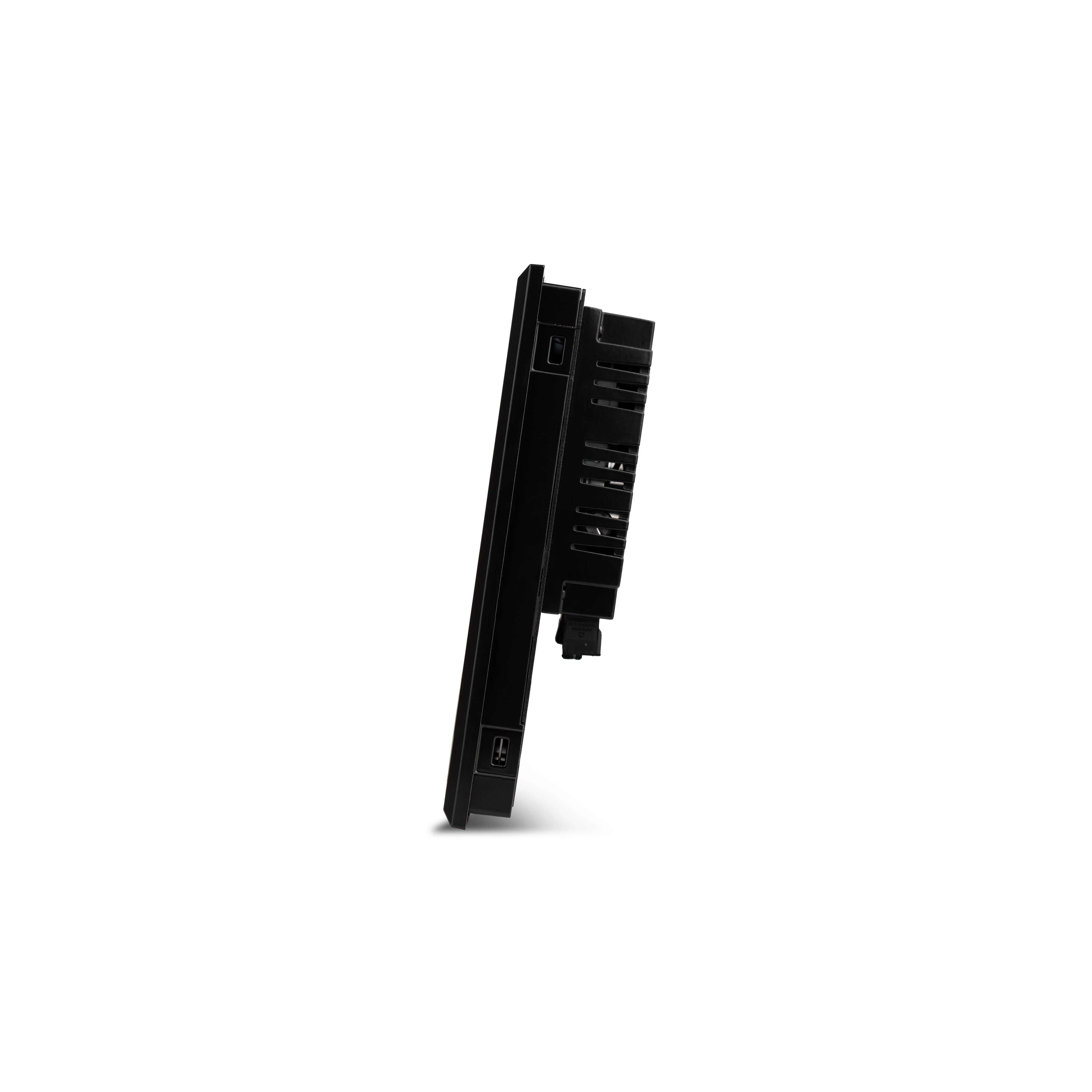

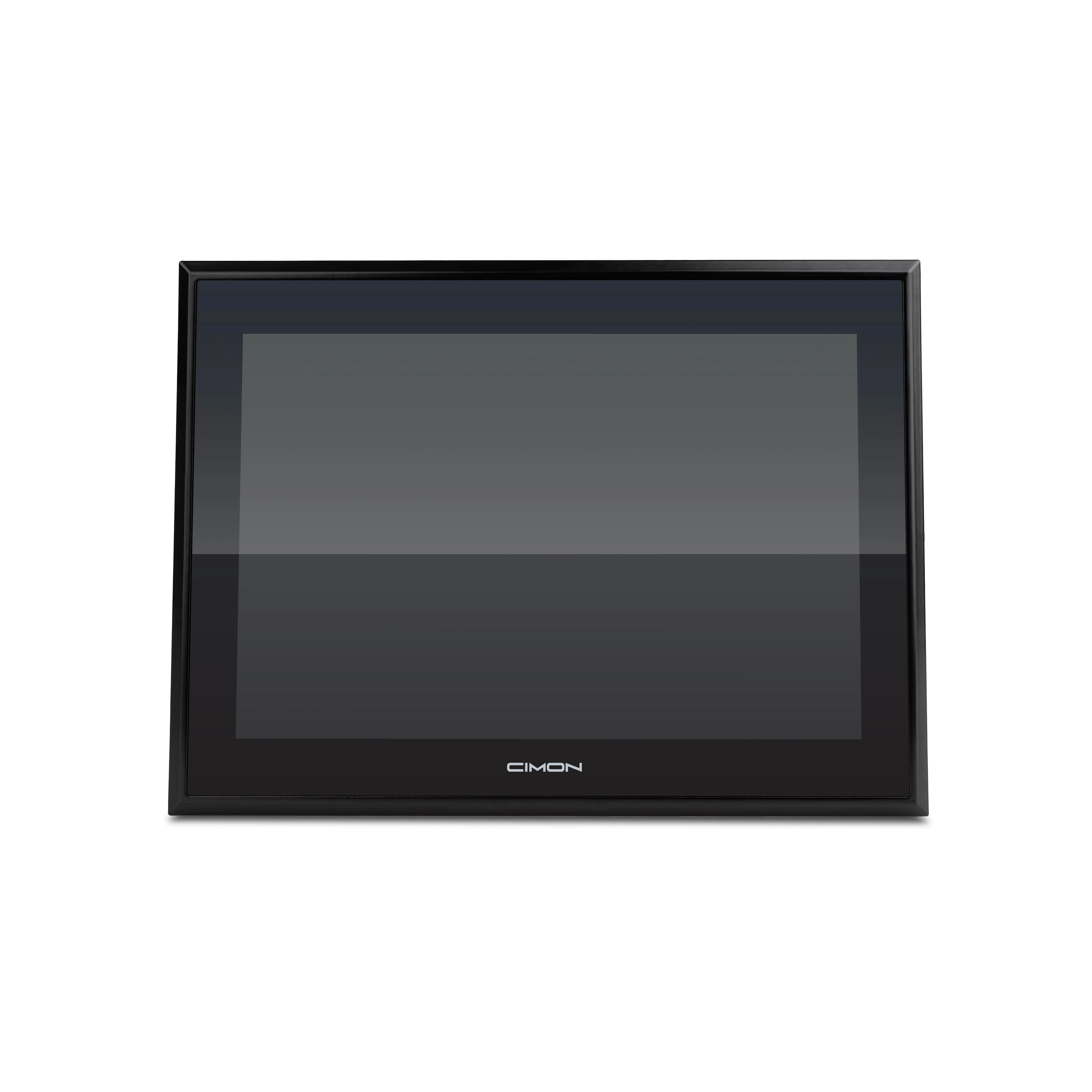

CM-eXT2-12W-R-DF - 12.1 inch, eXT2 Xpanel, Advanced HMI
12.1" Wide TFT Color Display
IP68 Front Protection Class
Dual Ethernet Ports
Price
Price Available on Request
Fast Shipping Available
Expert Support Included
Certifications: UL, CE, FCC
Complete Technical Specifications
Detailed technical parameters and performance characteristics for the CM-eXT2-12W-R-DF Advanced HMI.
PARAMETER
SPECIFICATION
Display Size
12.1 inch Wide TFT Color
Resolution
1280 x 800 WXGA
Touch Interface
5 wire resistive with ±2% accuracy
Memory
2 GB LPDDR4 RAM, 8 GB eMMC
Connectivity
2x Ethernet, RS-422/485, RS-232C
Power Requirements
24 VDC rated, 21.2W consumption
Operating Temperature
-20 to +70°C
Protection Class
IP68 front, NEMA Type 4X and 12
Dimensions
314.3 x 220.5 x 53.9 mm
Country of Origin
🇰🇷
South Korea
Engineered for Industrial Excellence
Advanced features and robust design elements that ensure reliable performance in demanding industrial environments.
High-Resolution Display
12.1" wide TFT color display with 1280x800 resolution and 600 cd/m² luminance delivers crystal-clear visuals for optimal operator control and monitoring.
Industrial-Grade Protection
IP68 front protection class with NEMA Type 4X and 12 compliance ensures reliable operation in harsh industrial environments with dust and water resistance.
Dual Network Connectivity
Two 10/100/1000 Ethernet ports provide redundant network connections and enhanced communication capabilities for mission-critical applications.
Ample Memory Capacity
2 GB LPDDR4 RAM and 8 GB eMMC storage with MicroSD expansion support ensures smooth operation and plenty of space for complex applications.
Long-Term Reliability
50,000-hour backlight life and real-time clock with 10-year backup ensure consistent performance and data integrity over extended operational periods.
Easy Installation
VESA 75mm x 75mm mounting compatibility and comprehensive connectivity options simplify installation and integration into existing systems.
Frequently Asked Questions
What connectivity options are available with this HMI?

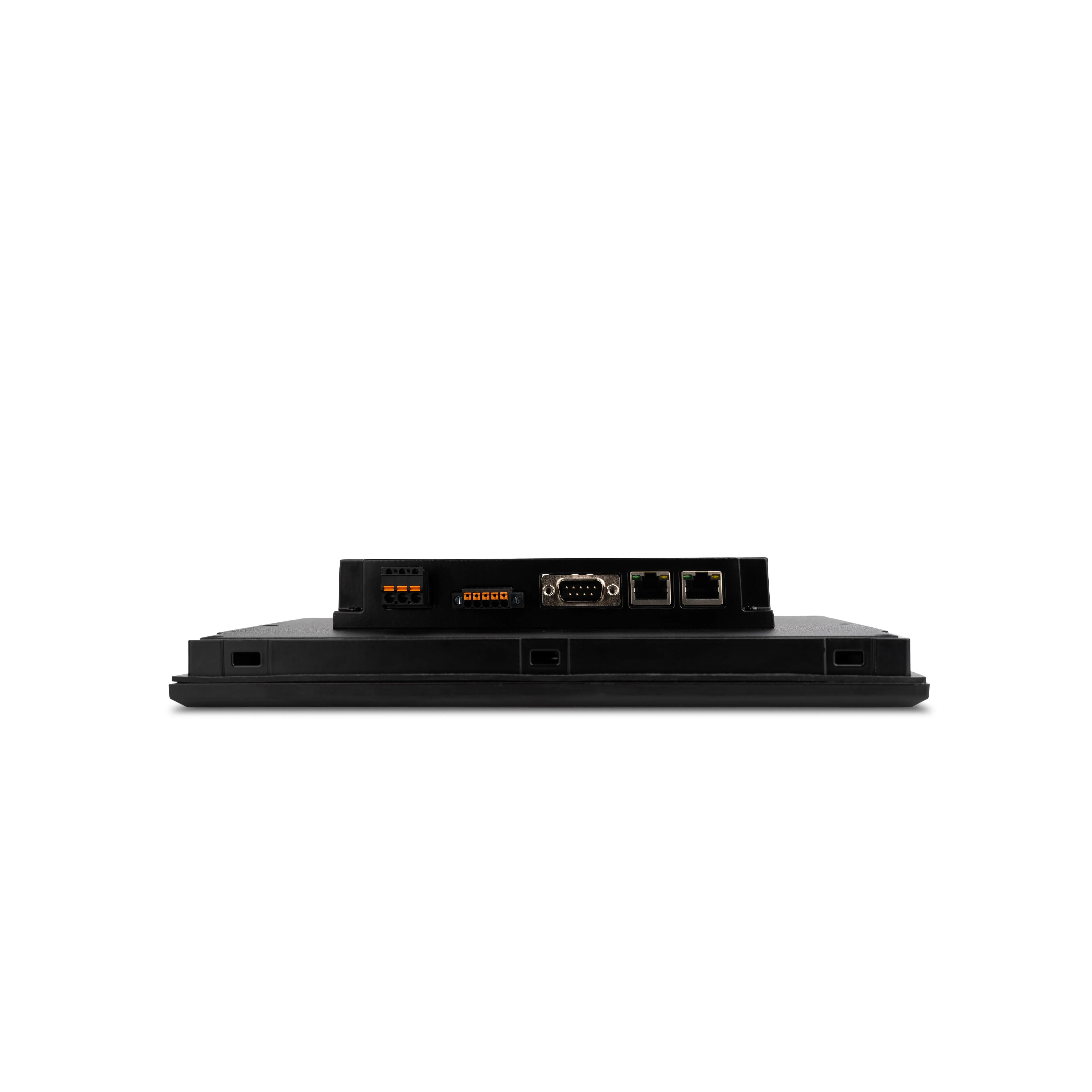

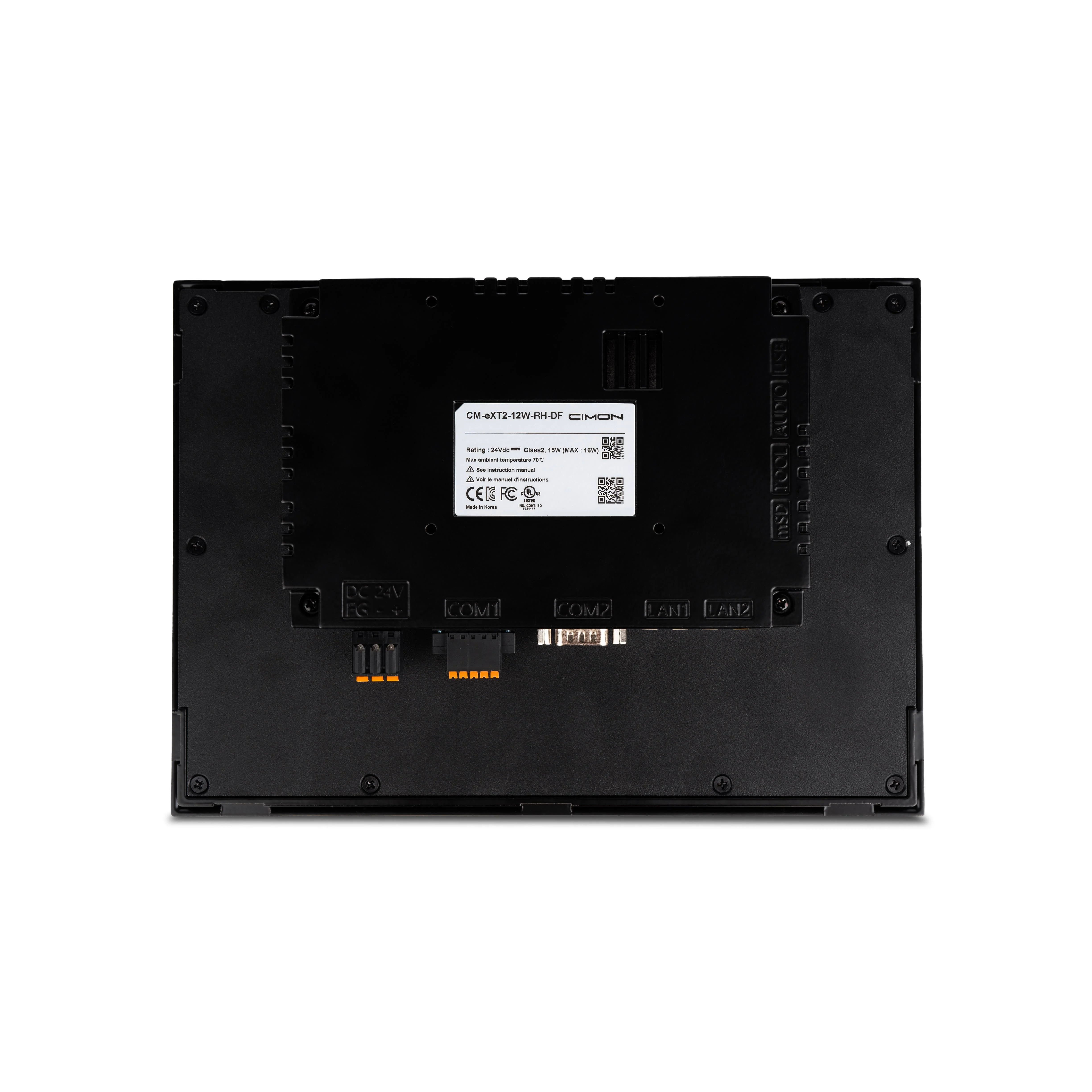

The unit includes dual 10/100/1000 Ethernet ports, RS-422/485 and RS-232C serial ports, USB Type A and USB-C tool port, MicroSD card slot, and audio line-out for comprehensive connectivity options.
How long is the display backlight expected to last?
The LED backlight is rated for 50,000 hours of operation, which translates to approximately 5-6 years of continuous use, ensuring long-term reliability and minimal maintenance requirements.
What mounting options are available for installation?
The HMI supports standard 75mm x 75mm VESA mounting and panel mounting with a 305 x 212 mm panel cut-out requirement. The aluminum enclosure provides structural integrity for secure installation.
Is technical support available for implementation and troubleshooting?
Yes, ValuAdd provides comprehensive technical support including implementation guidance, troubleshooting assistance, and access to manuals and datasheets through our experienced engineering team.
