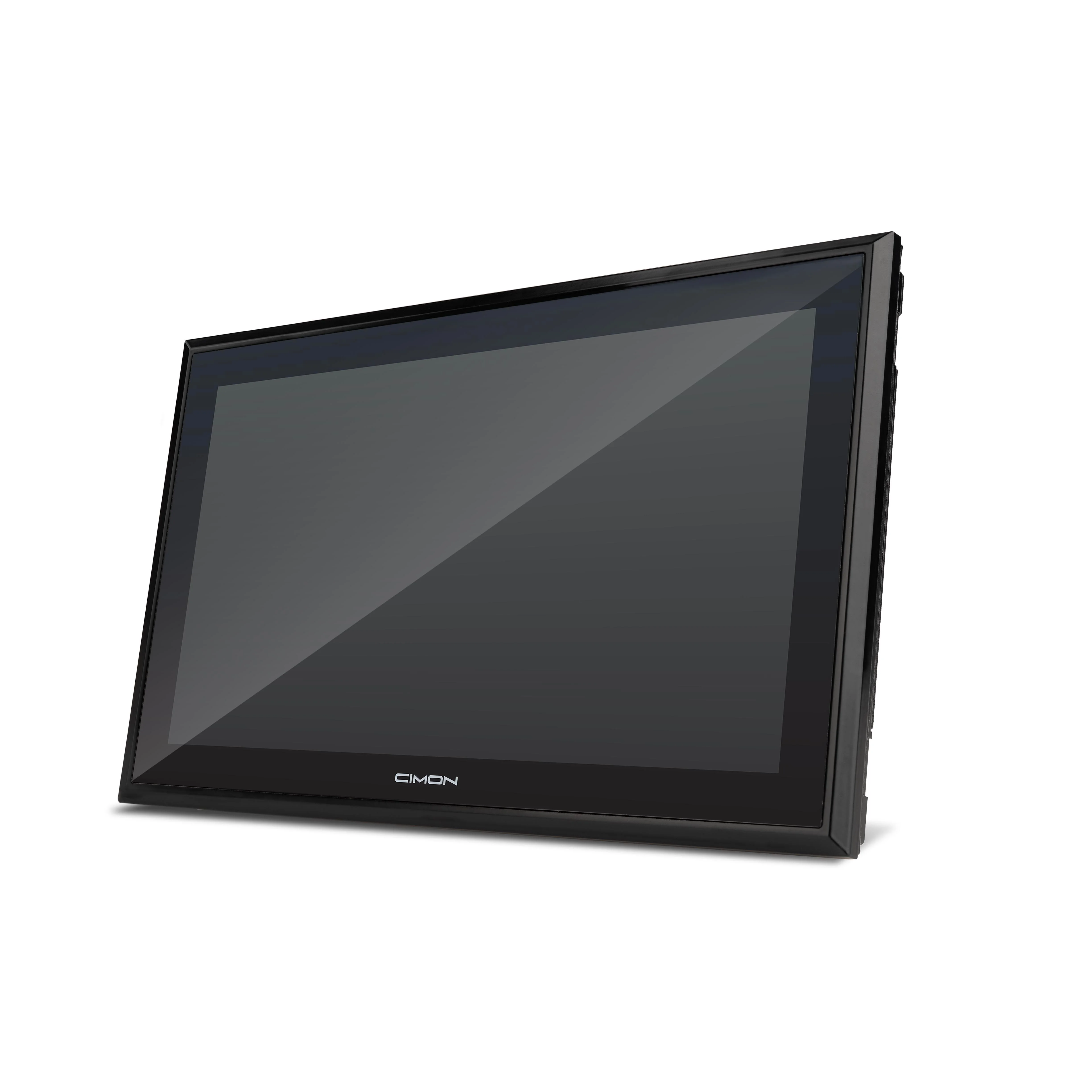

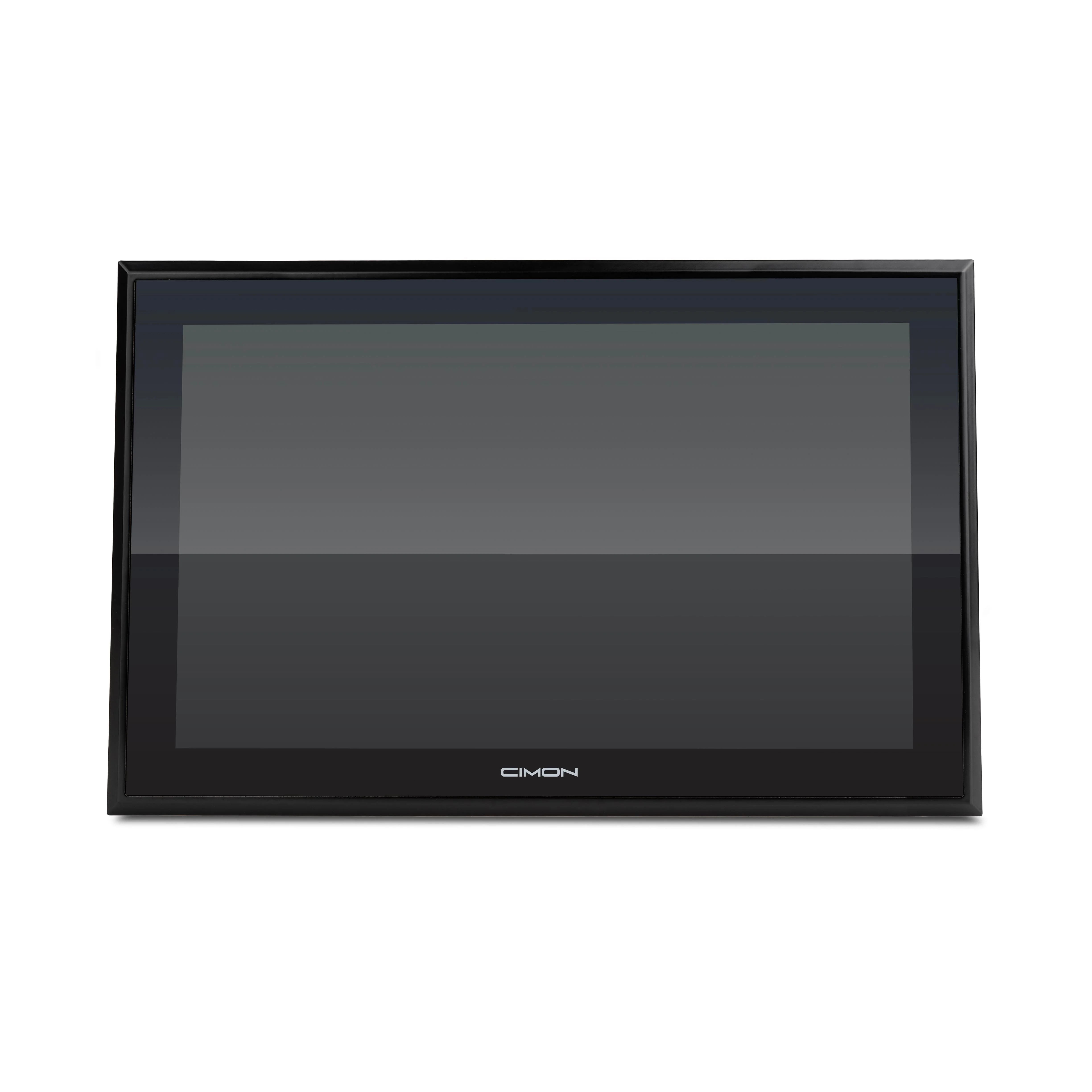

CM-eXT2-15W-R-DE - 15.6 inch, eXT2 Xpanel, Base HMI

15.6" Display with 1920x1080 Resolution
IP66 Front Protection Class
Resistive Single Touch Technology
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Expert Technical Support
Territory-Based Service
Certifications: UL, CE, FCC, KC, IP66

Technical Specifications Overview

Comprehensive technical details for the CM-eXT2-15W-R-DE HMI system specifications.

PARAMETER
SPECIFICATION
Display Size
15.6 inch
Display Type
Wide TFT Color LCD
Resolution
1920 x 1080 WXGA (16:9)
Touch Technology
5 wire resistive
Memory
2 GB LPDDR4 RAM, 8 GB eMMC
Power Supply
24 VDC Class 2
Power Consumption
23.5 W (Max: 25 W)
Operating Temperature
0–65°C
Protection Class
IP66 NEMA Type 4X, 12 (Front)
Dimensions
393.6 x 247.9 x 53.9 mm
Weight
3.2 kg
Origin
🇰🇷 Korea

Engineered for Superior Performance

Advanced features and robust design make this HMI ideal for demanding industrial applications and control systems.

High-Resolution Display

15.6-inch TFT display with 1920x1080 resolution provides crystal-clear visualization for critical process monitoring and control operations.

Industrial Protection

IP66 front protection class ensures reliable operation in harsh industrial environments with dust and water resistance capabilities.

Precise Touch Control

5-wire resistive touch technology delivers accurate control with ±2% accuracy, perfect for precision industrial operations.

Versatile Connectivity

Multiple communication ports including Ethernet, serial, and USB connections enable seamless integration with existing automation systems.

Wide Temperature Range

Operates reliably in temperatures from 0°C to 65°C, making it suitable for various industrial environments and applications.

Ample Storage Capacity

2GB RAM and 8GB eMMC storage provide sufficient memory for complex applications and data logging requirements in industrial settings.

Frequently Asked Questions

What are the main applications for the CM-eXT2-15W-R-DE HMI?
This HMI is designed for industrial automation, manufacturing control systems, machine interfaces, and process monitoring applications where a rugged 15.6-inch display is required.
What communication protocols are supported by this HMI?
The HMI supports Ethernet, RS-422/485, RS-232C serial communications, and USB connectivity for versatile integration with various industrial automation systems and PLCs.
What is the IP rating and environmental protection?
The front panel has IP66 protection class with NEMA Type 4X and 12 compliance, providing excellent protection against dust and water ingress in industrial environments.
What power supply requirements does this HMI have?
The HMI operates on 24 VDC Class 2 power supply with a consumption of 23.5W (maximum 25W) and maximum inrush current of 30A during startup.
Does ValuAdd provide technical support and installation assistance?
Yes, ValuAdd provides comprehensive technical support, product selection guidance, and local territory-based assistance for HMI integration and troubleshooting across our service areas.

Versatile Applications Across Multiple Industries

The CM-eXT2-15W-R-DE HMI serves diverse industrial automation needs with reliable performance and robust design features.

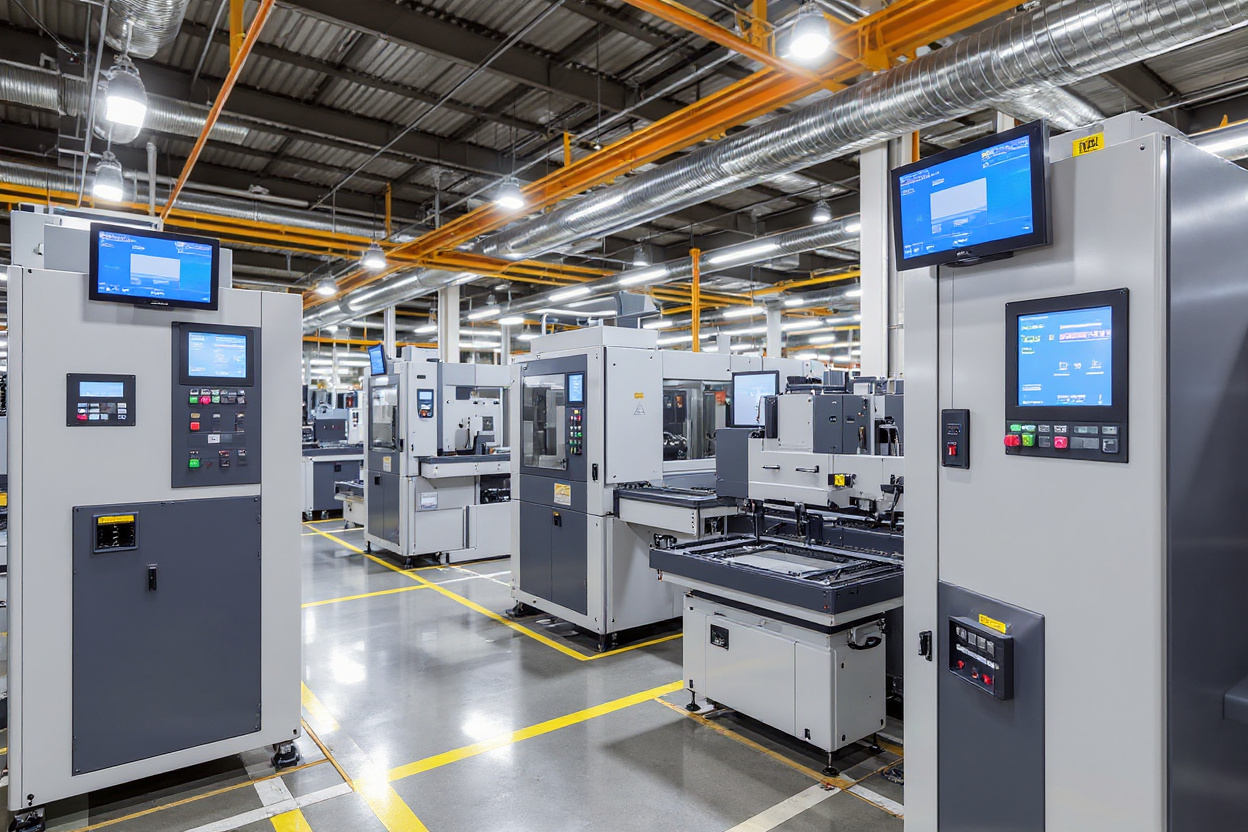

Manufacturing control systems and production line automation interfaces#1.5

Manufacturing

Essential for production line monitoring, machine control interfaces, and quality management systems in manufacturing facilities.

Process control automation systems in chemical and pharmaceutical industries#1.5

Process Control

Ideal for chemical processing, pharmaceutical production, and other process industries requiring precise monitoring and control capabilities.

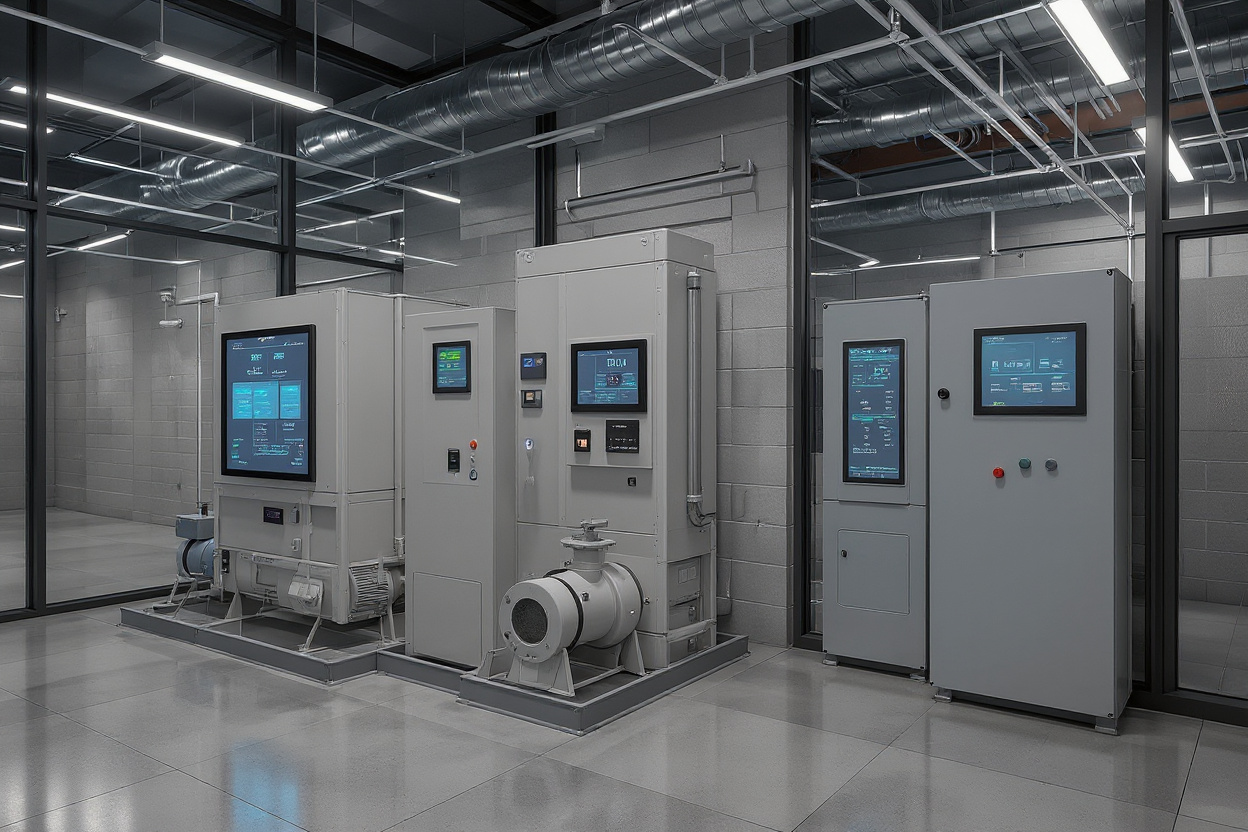

Building automation HVAC and energy management system interfaces#1.5

Building Automation

Perfect for HVAC control systems, energy management, and building automation applications requiring user-friendly interfaces and reliable operation.
