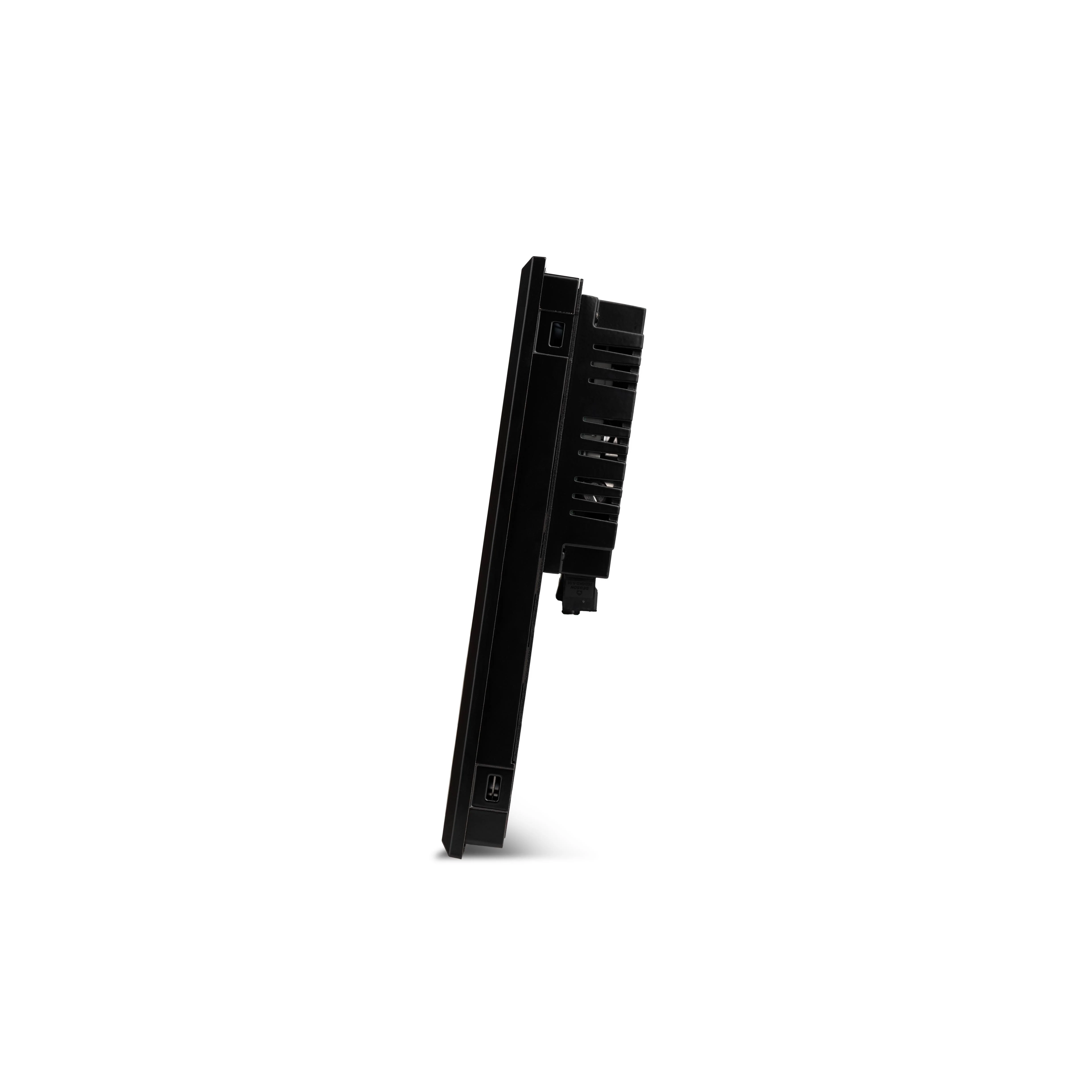

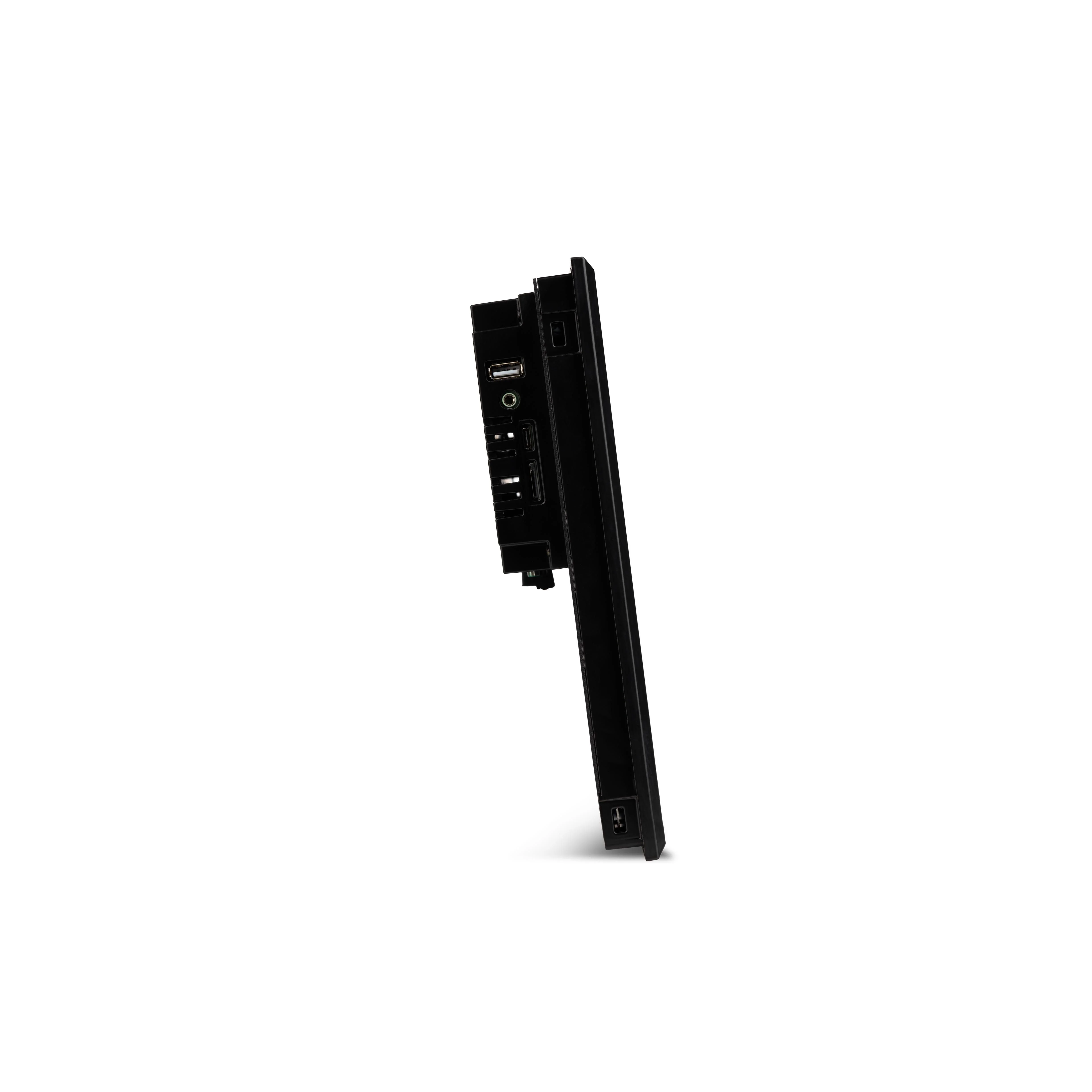

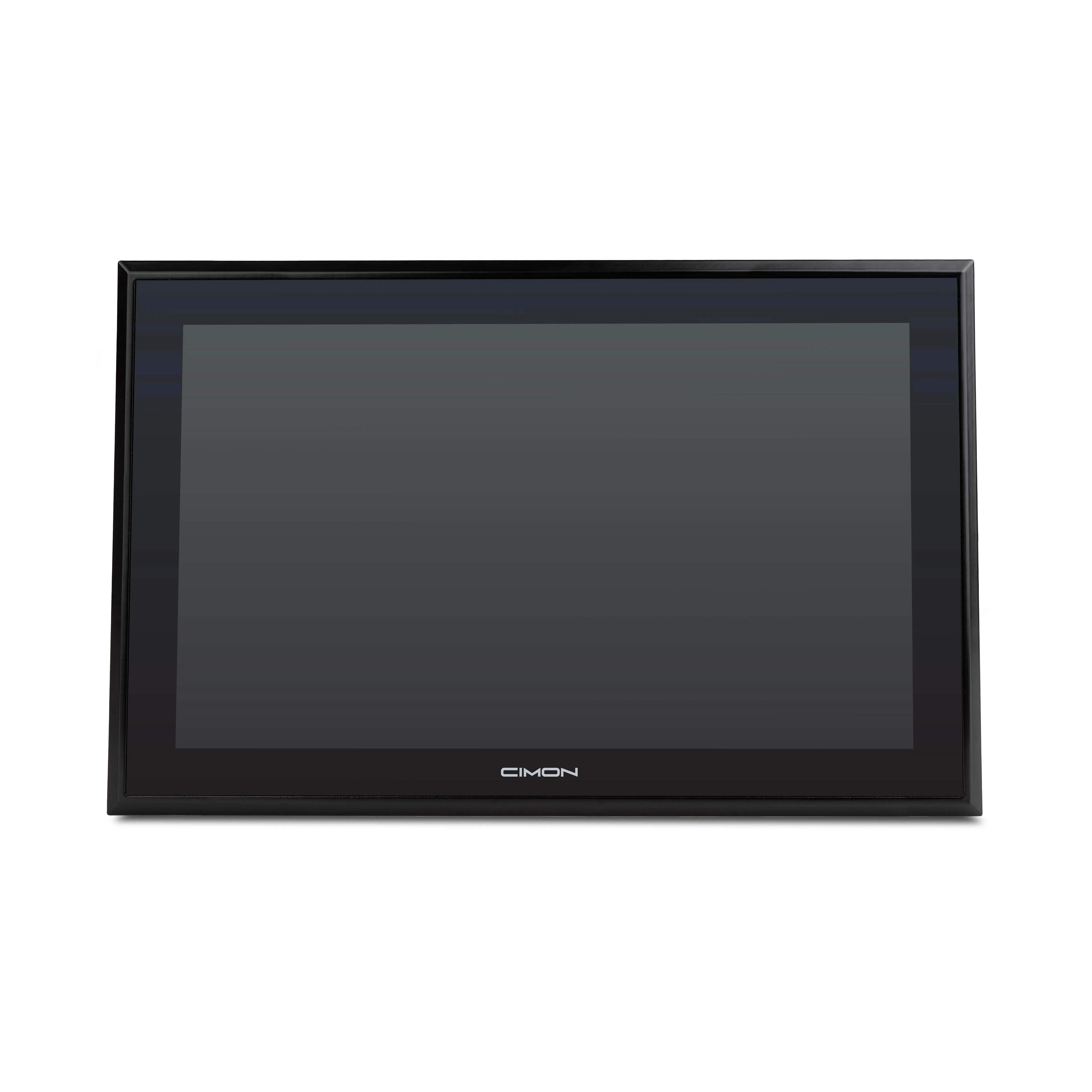

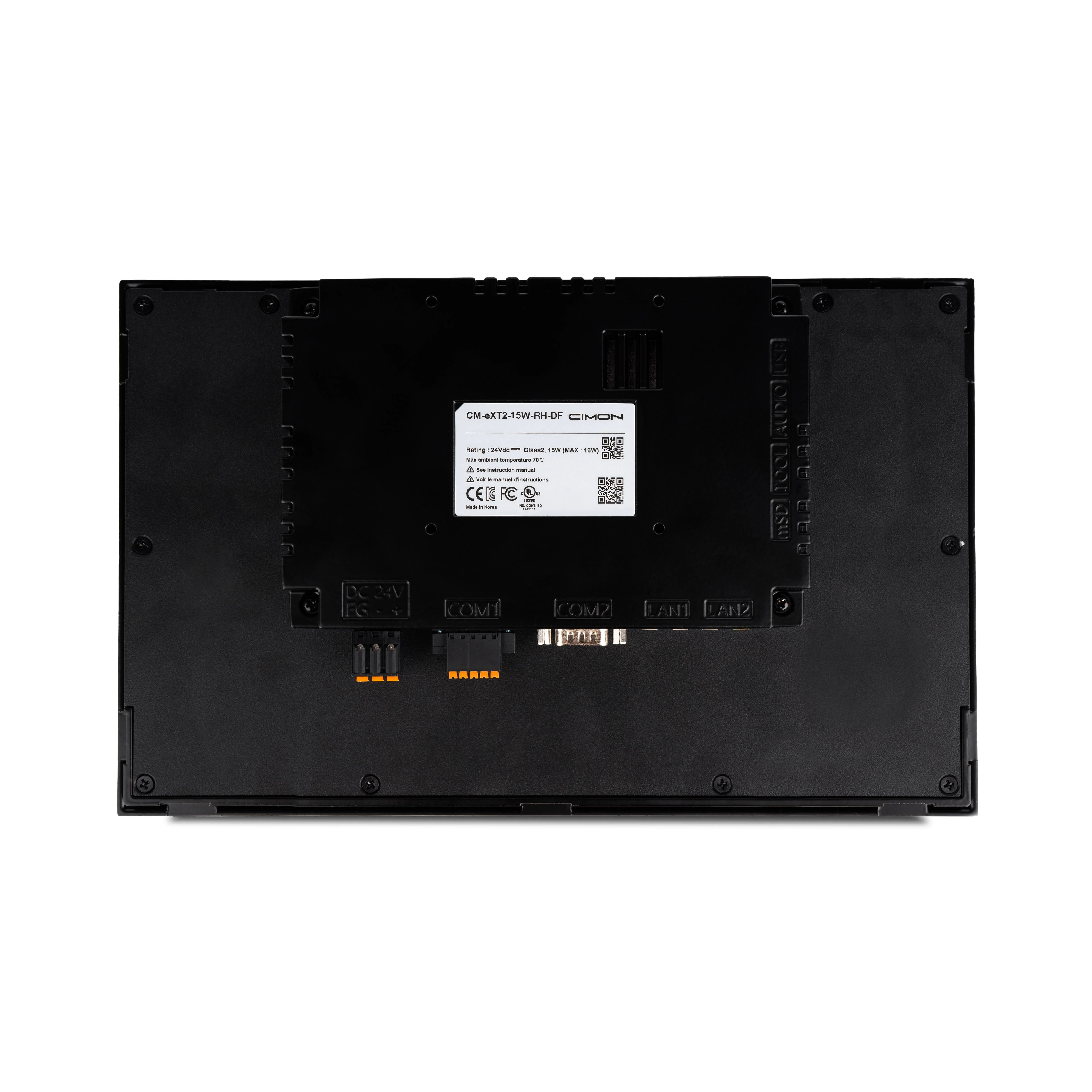

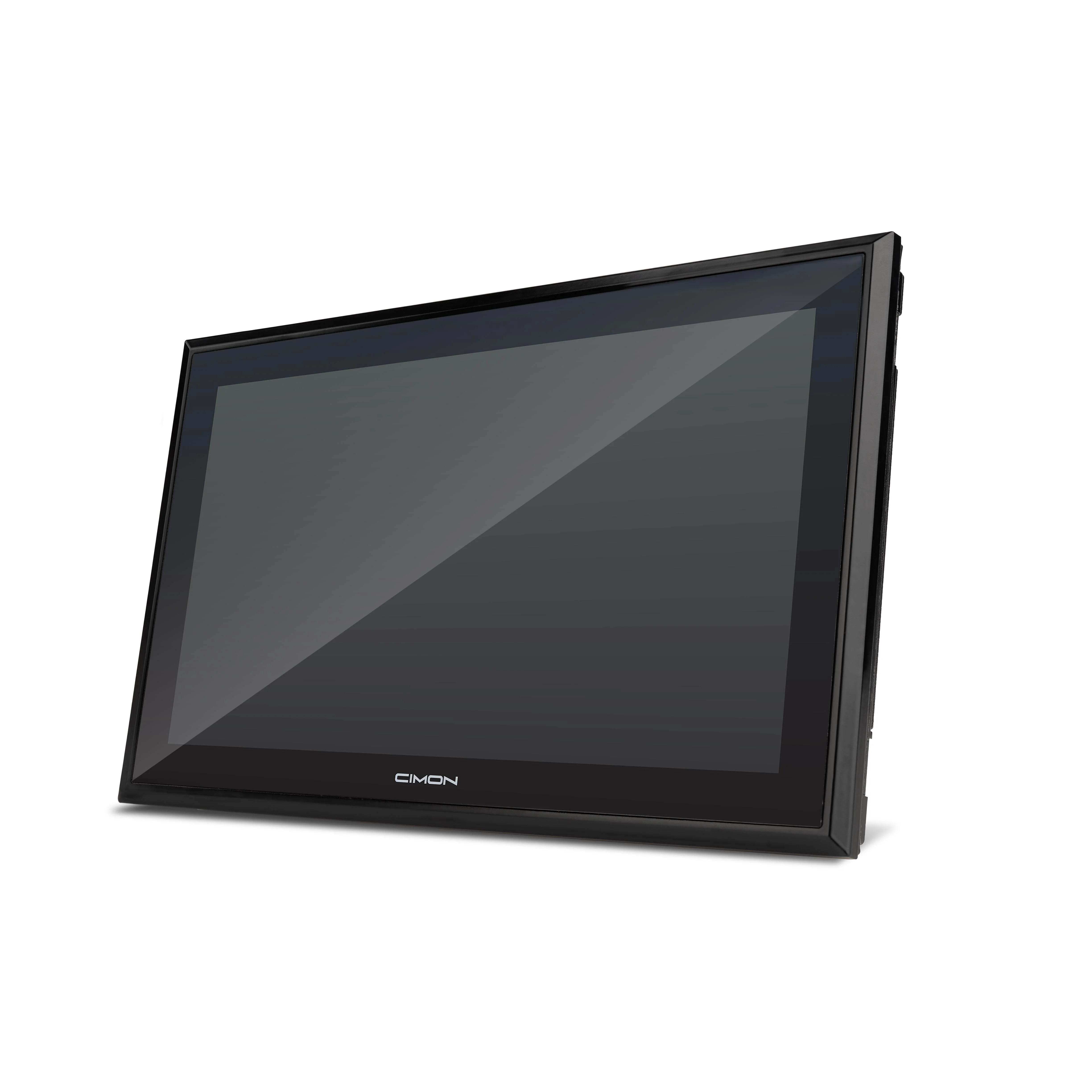

CM-eXT2-15W-RH-DF 15.6 inch, eXT2 Xpanel, High-Brightness HMI
High-Brightness 1,200 cd/m² Display
IP68 Front Protection Rating
Dual Ethernet Connectivity
Price
Price Available on Request
Expert Support Included
Territory-Based Service
Certifications: UL, CE, FCC, IP68
Technical Specifications Overview
Complete technical specifications for the CM-eXT2-15W-RH-DF industrial HMI display system.
Specification
Value
Display Size
15.6 inch Wide TFT Color
Resolution
1920 x 1080 WXGA (16:9)
Luminance
1,200 cd/m²
Touch Technology
5-wire resistive with ±2% accuracy
Memory
2 GB LPDDR4 RAM, 8 GB eMMC
Connectivity
Dual Ethernet, RS-422/485, RS-232C
Power Supply
24 VDC, 35W (Max: 36.6W)
Operating Temperature
-20°C to +70°C (-4°F to +158°F)
Protection Rating
IP68 Front, NEMA Type 4X and 12
Manufactured In
🇰🇷
South Korea
Engineered for Industrial Excellence
Advanced features designed to deliver superior performance in demanding industrial environments with exceptional reliability and ease of use.
High-Brightness Display
Exceptional 1,200 cd/m² luminance ensures clear visibility in bright industrial environments with 50,000 hour LED backlight life for reliable long-term operation.
Rugged Protection
IP68 front protection and NEMA Type 4X/12 compliance provides superior defense against dust, water, and harsh environmental conditions in industrial settings.

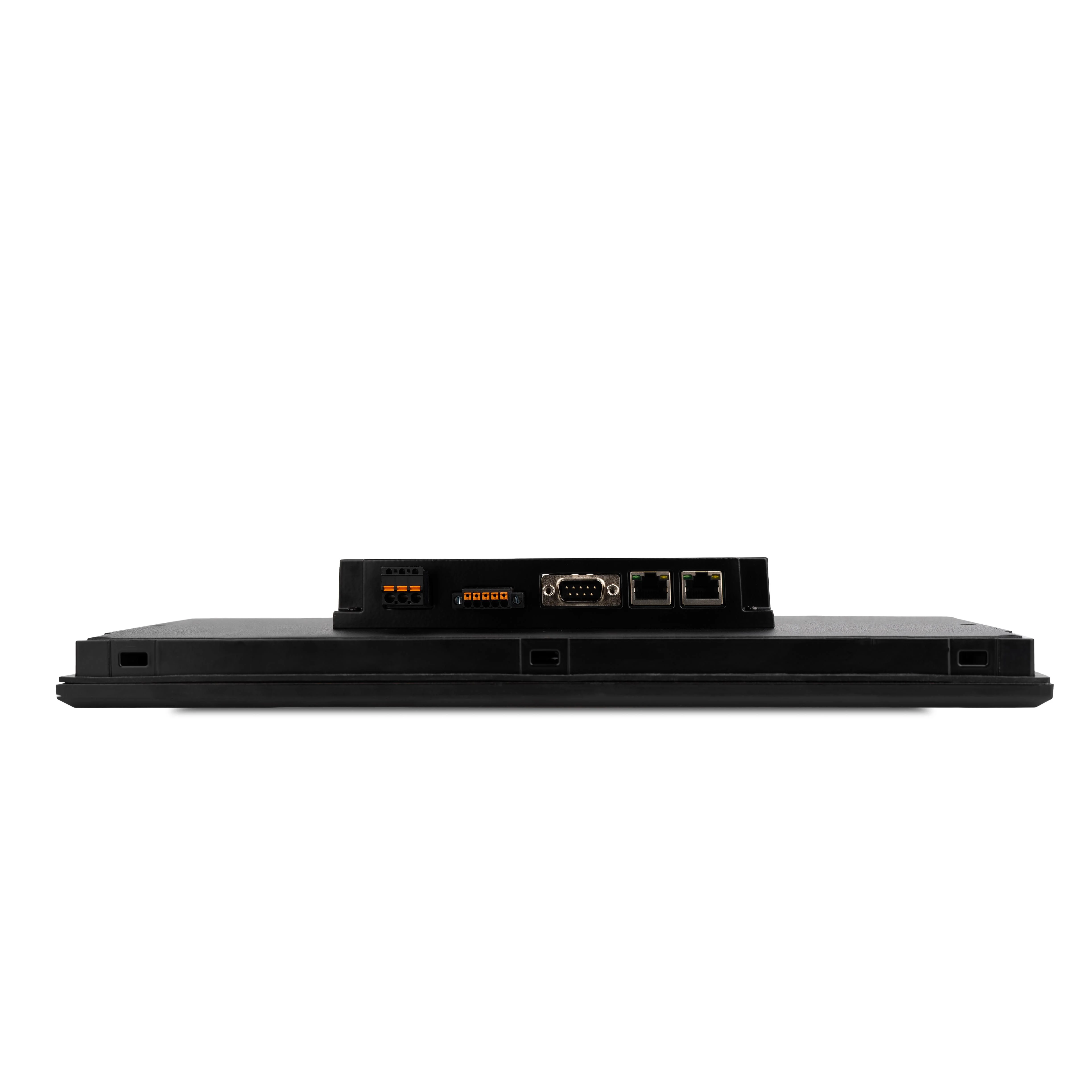

Dual Connectivity
Multiple communication options including dual Ethernet, RS-422/485, RS-232C, USB-A and USB-C ensure seamless integration with existing automation systems.
Precise Touch Control
5-wire resistive touch technology with ±2% accuracy provides reliable operation even with gloved hands in industrial environments.
Advanced Processing
2GB LPDDR4 RAM and 8GB eMMC storage with MicroSD expansion delivers fast performance for complex industrial applications and data management.
Wide Temperature Range
Operating range of -20°C to +70°C ensures reliable performance in extreme temperature conditions across diverse industrial applications.
Frequently Asked Questions
Can this HMI integrate with existing automation systems?
Yes, the CM-eXT2-15W-RH-DF features dual Ethernet ports, RS-422/485 and RS-232C serial communications, plus USB connectivity options. This comprehensive connectivity suite enables seamless integration with PLCs, SCADA systems, and other industrial automation equipment from various manufacturers.
What certifications does this HMI have for safety compliance?
The unit carries comprehensive certifications including UL61010-1/UL61010-2-201, CE EMC Directive 2014/30/EU, FCC Part 2/15/18, and KC registration. It also meets IP68 front protection, NEMA Type 4X and 12 standards, plus JIS B 3502 and IEC/EN 61131-2 vibration and shock protection requirements.
How does the resistive touch screen perform with industrial gloves?
The 5-wire resistive touch technology is specifically designed for industrial use and responds reliably to pressure from gloved hands, stylus, or any pointed object. With ±2% accuracy across the active area, it maintains precision even when operators wear protective equipment required in industrial settings.
What technical support and documentation are available for this product?
ValuAdd provides comprehensive technical support including detailed manuals, datasheets, and direct engineering consultation. Our territory-based technical specialists offer on-site support and application guidance to ensure optimal integration and performance of your HMI system.
