Are Fuse and Disconnect Switches Synonymous Guide

A fusible disconnect switch integrates fuse holders to provide both isolation and overcurrent or short-circuit protection in one unit — such as the FUSERBLOC UL. A non-fusible disconnect switch, like the SIRCO UL or SIRCO M, provides only circuit isolation and disconnection without built-in fuse protection, relying on upstream protective devices.

In the USA, disconnect switches are governed primarily by UL 98 (enclosed switches), UL 508 (motor-rated switches), UL 98B (DC/PV switches), and CSA C22.2 standards. IEC 60947-3 is the internationally recognized equivalent. Products like the SIRCO M and FUSERBLOC UL comply with multiple of these standards simultaneously.

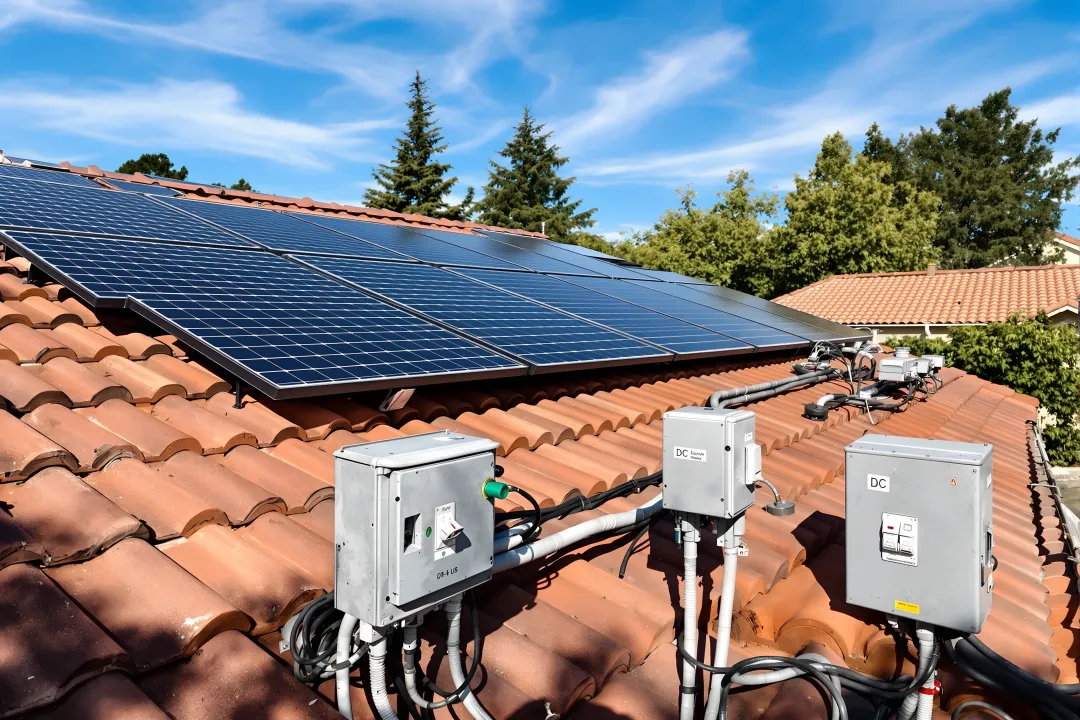

Yes. Specialized DC-rated disconnect switches such as the SIRCO MOT DC, SIRCO MOT DC ESS, INOSYS LBS UL 98B, and INOSYS LBS DC UL ESS are designed for PV and ESS applications at voltages up to 1500 VDC, meeting UL 98A, UL 98B, and IEC 60947-3 requirements for DC-21B and DC-PV2 utilization categories.

Disconnect switches in this range span from 16A (SIRCO M) up to 2000A (SIRCO MOT DC and SIRCO MOT DC ESS). Mid-range fusible options like the FUSERBLOC UL cover 30A to 800A, while load break switches like the INOSYS LBS UL 98B cover 10A to 1200A, providing broad coverage for diverse industrial and renewable energy needs.

A manual changeover switch, like the COMO CS I-0-II, transfers load between two power sources manually. It is used in source transfer applications where an automatic transfer switch is unnecessary or cost-prohibitive — for example, switching between a utility supply and a backup generator in commercial or industrial electrical panels up to 600 VAC.

Key safety features include Lock Out / Tag Out (LOTO) capability with multi-padlock support, door interlocking in the ON position, visible contact position indication, and high breaking capacity for fault conditions. Products like the FUSERBLOC UL and SIRCO M Painted Steel Enclosure include these features along with UL and CSA certifications for verified safety performance.
